Stainless Steel Cable Mesh


Flexible stainless steel cable mesh is the charateristic leading product of  Wire Mesh Plant which has been manufacturing the product since 1990. The Plant's independent developed equipments and skilled technique can ensure high quality products and sound service worldwide.

More products, please click www.mesh-wire.biz .

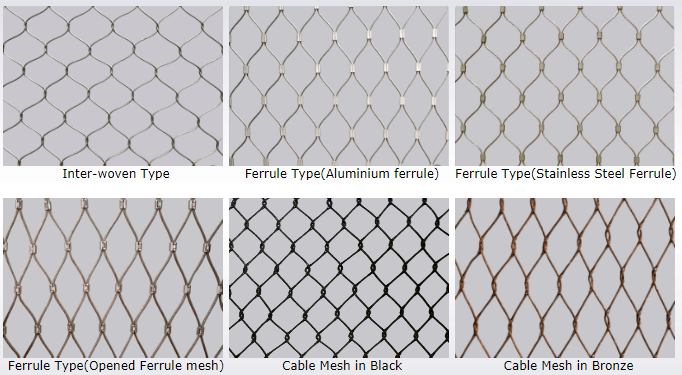

Flexible stainless steel rope mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc.and two main strand structures:7*7 and 7*19. Our mesh products are supplied in two main series according to different weave-types: Inter-woven and Ferrule Type. The ferrule type series are sub-divided into aluminum alloy mesh and stainless steel mesh by the material of the ferrule.
Also,our company can color the stainless steel cable mesh by special processes,we can make the mesh into Black,Bronze,etc.

more detail , please check our website:  www.mesh-wire.biz




Our normal mesh specification is : cable dia.1mm-4mm and meshsize:20mm-160mm. Apart from the normal specifications, we can customize other specifications of mesh in different cable diameters and mesh sizes.

Flexible Stainless Steel Cable MeshInter-woven Type

Item No.s

Cable Diameter

Mesh Opening Size

Normal Break



inch

mm

inch

mm

lbs.

HHY-3212W

1/8

3.2

4.75 x 4.75

120 x 120

1,600

HHY-3210W

1/8

3.2

4 x 4

102 x 102

1,600

HHY-3290W

1/8

3.2

3.55 x 3.55

90 x 90

1,600

HHY-3276W

1/8

3.2

3 x 3

76 x 76

1,600

HHY-3250W

1/8

3.2

2 x 2

51 x 51

1,600

HHY-2410W

3/32

2.4

4 x 4

102 x 102

920

HHY-2490W

3/32

2.4

3.55 x 3.55

90 x 90

920

HHY-2476W

3/32

2.4

3 x 3

76 x 76

920

HHY-2460W

3/32

2.4

2.4 x 2.4

60 x 60

920

HHY-2450W

3/32

2.4

2 x 2

51 x 51

920

HHY-2076W

5/64

2.0

3 x 3

76 x 76

676

HHY-2060W

5/64

2.0

2.4 x 2.4

60 x 60

676

HHY-2050W

5/64

2.0

2 x 2

51 x 51

676

HHY-2038W

5/64

2.0

1-1/2 x 1-1/2

38 x 38

676

HHY-1676W

1/16

1.6

3 x 3

76 x 76

480

HHY-1650W

1/16

1.6

2 x 2

51 x 51

480

HHY-1638W

1/16

1.6

1-1/2 x 1-1/2

38 x 38

480

HHY-1630W

1/16

1.6

1.2 x 1.2

30 x 30

480

HHY-1625W

1/16

1.6

1 x 1

25.4 x 25.4

480

HHY-1238W

3/64

1.2

1-1/2 x 1-1/2

38 x 38

270

HHY-1230W

3/64

1.2

1.2 x 1.2

30 x 30

270

HHY-1225W

3/64

1.2

1 x 1

25.4 x 25.4

270

HHY-1220W

3/64

1.2

4/5 X 4/5

20 x 20

270


Flexible Stainless Steel Cable MeshFerrule Type

Item No.s

Cable Diameter

Mesh Opening SizeW×H

Normal Break



inch

mm

inch

mm

lbs.

HHY-32120F

1/8

3.2

4.75 x 8.23

120 x 207.8

1,600

HHY-32102F

1/8

3.2

4 x 6.9

102 x 176.7

1,600

HHY-3290F

1/8

3.2

3.55 x 6.15

90 x 156

1,600

HHY-3276F

1/8

3.2

3 x5.2

76 x 131.6

1,600

HHY-3251F

1/8

3.2

2 x3.46

51 x88.3

1,600

HHY-24102F

3/32

2.4

4x6.9

102x176.7

920

HHY-2490F

3/32

2.4

3.55x6.15

90x 156

920

HHY-2476F

3/32

2.4

3 x 5.2

76x 131.6

920

HHY-2460F

3/32

2.4

2.4x 4.16

60x 104

920

HHY-2451F

3/32

2.4

2x3.46

51 x 88.3

920

HHY-2076F

5/64

2.0

3 x 5.2

76 x 131.6

676

HHY-2060F

5/64

2.0

2.4x 4.16

60 x 104

676

HHY-2051F

5/64

2.0

2 x 3.46

51 x 88.3

676

HHY-2038F

5/64

2.0

1-1/2 x 2.6

38 x 65.8

676

HHY-1676F

1/16

1.6

1.2 x2.08

76 x 131.6

480

HHY-1651F

1/16

1.6

2x 3.46

51 x 88.3

480

HHY-1638F

1/16

1.6

1-1/2 x 2.6

38 x 65.8

480

HHY-1630F

1/16

1.6

1.2x2.08

30 x 52

480

HHY-1625F

1/16

1.6

1 x 1.73

25.4 x 44

480

HHY-1238F

3/64

1.2

1-1/2x2.6

38 x 65.8

270

HHY-1230F

3/64

1.2

1.2 x 2.08

30 x 52

270

HHY-1225F

3/64

1.2

1 x 1.73

25.4 x 44

270

HHY-1220F

3/64

1.2

4/5 x 1.39

20 x 34.6

270

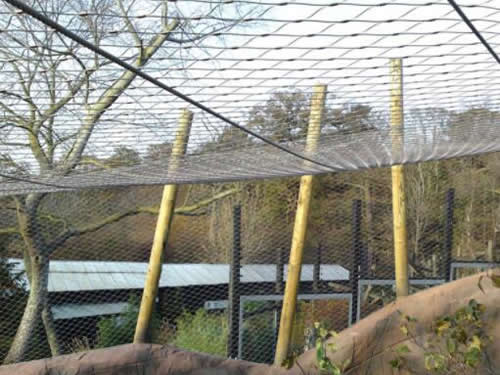

Flexible stainless steel cable mesh, inter-woven type inparticular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,hightransparence and wide span. The flexible s.s. cable mesh has unreplacableadvantages compared with other mesh products in many aspects likepracticability, security, aesthetic property and durability etc.

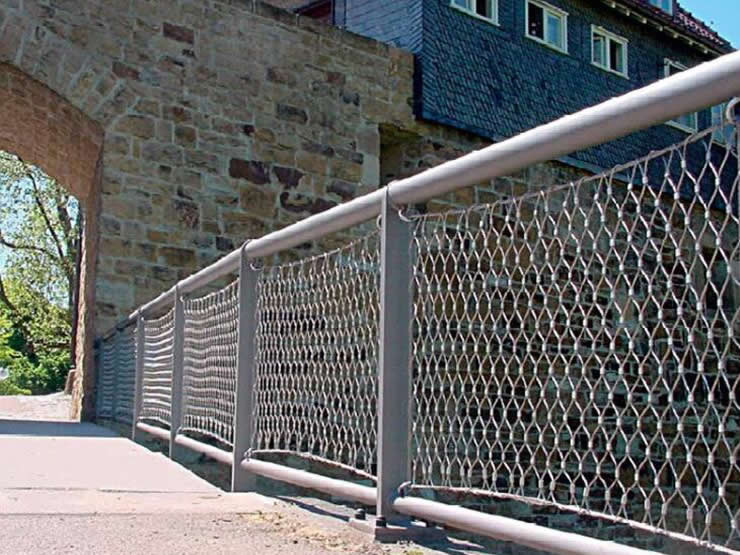

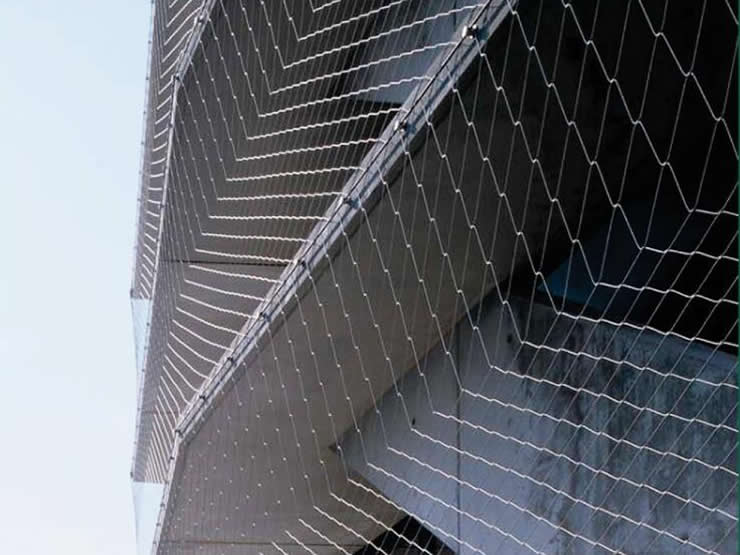

The stainless steel cable mesh, especially theferrule type mesh, are more used in fields like balustrades on bridges andstaircases, large barrier fences, and building facade trellis systems. As anemerging product on architectural decoration and protection, stainless steelrope mesh has provided the mordern architectural decoration and horticultureengineering with a new and stylish element, which are getting more and moreappreciated by designeers and clients all over the world.


Huahaiyuan company can provide various of accessories toinstall stainless steel cable mesh according to our customers’requirements.Including ferrules,cable wire,connectors and tools.


Huahaiyuan company has finished several important projects inrecently years,provide stainless steel cable mesh and service in good qualityfor our clients,help them to design the options and install the stainless steelcable mesh,and received good reputation from our clients around the world.




If you have any interests on our products, please feel freeto contact us. We would also love to give you our practical advices andfull supports on specification choices and installation schemes.

more detail , please check our website:  www.mesh-wire.biz
